Experiment set PRIMARY SCHOOL 5 (Machines and Bridges)

Description

Constructors and technicians of tomorrow

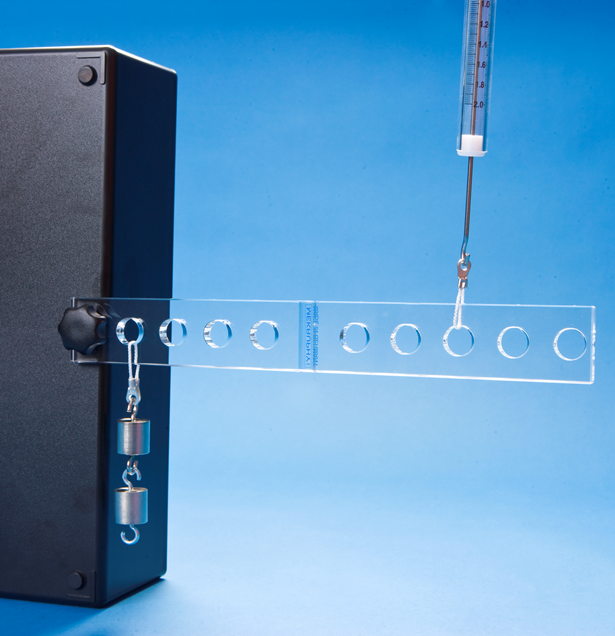

This experiment set appeals to all students who are already interested in technology or those who are willing to get interested in it. From a simple inclined plane to first, second and third-class levers, the golden rules of mechanics are always confirmed. Any reduction in the force to be applied means applying it over a greater distance. Further topics are

  • Transmissions:
    In these experiments on changes to rotational motion, the students will feel like they have been transported to a real mechanics workshop. They can enjoy investigating the effects of wheels, belts, gears and chains and respond eagerly when they can finish by using the battery-powered electric motor
  • Design of bridges:
    In the last five of the sixteen experiments in total, youngsters can feel like they are already bridge designers. They can see how a girder works better for bridges than a plank, see the effect of arches and chains and weigh the pros and cons of bridges using piers, of arched bridges or suspension bridges
Contents

01.01.10  Storage case

45.02.00  Inlay with cut-outs for apparatus, G5

45.03.00  Balls and screws in box, G5

62.04.20  4 Wheels

45.05.00  9 Cylindrical rods in box

45.06.00  4 Aluminium blocks with slots

43.07.00  Bosshead clamp, G3

45.08.00  Curved plastic plate, short

45.09.00  Curved plastic plate, long

45.10.00  Steel block with hook

01.11.00  Coil spring, 30 N/m

02.12.10  Threaded rod with hook

45.13.00  6 String clamps

41.14.00  Perforated board

01.15.00  4 Weights, 50 g, with hooks

01.16.00  Force gauge, 2 N

61.17.00  4 Stand rods, K1

45.18.00  4 Extension rods, G5

45.19.00  Geared motor on mounting plate

01.20.00  Rubber band, M1, in box

45.21.00  Gear, large

45.22.00  Gear, medium

45.23.00  Gear, small

45.24.00  Bevel gear, large

45.25.00  Bevel gear, small

45.26.00  Chain for toothed gear

45.27.00  Drive wheel, large

45.28.00  2 Drive wheels, small

45.29.00  Mounting plate A

45.30.00  2 Mounting plates B 45.31.10  Perspex strip, wide, 30 cm

45.31.20  Perspex strip, wide, 27 cm

45.32.00  2 Perspex strips, narrow

45.33.00  4 Plastic struts

45.34.00  Set of cords in box

45.35.00  Star grip screw

45.36.00  Screwdriver, G5

Experiments

P5-1:   How can forces be measured?

P5-2:   What is the advantage of using an inclined plane?

P5-3:   Is it better to use rollers?

P5-4:   What is the advantage of using wheels?

P5-5:   How could children pick up their dads?

P5-6:   Why is my strength so effective when I use a spanner?

P5-7:   How is force applied to the right point?

P5-8:   Which wheel will turn faster?

P5-9:   Why does a bicycle not have a drive belt?

P5-10: What are the advantages of geared transmissions?

P5-11: How could you change the direction of rotation?

P5-12: Why does a beam support more weight than a plank?

P5-13: What are the advantages of piered bridges?

P5-14: What are the advantages of arched bridges?

P5-15: What are the advantages of suspension bridges?

P5-16: Could a suspension bridge look any different?
